Description :

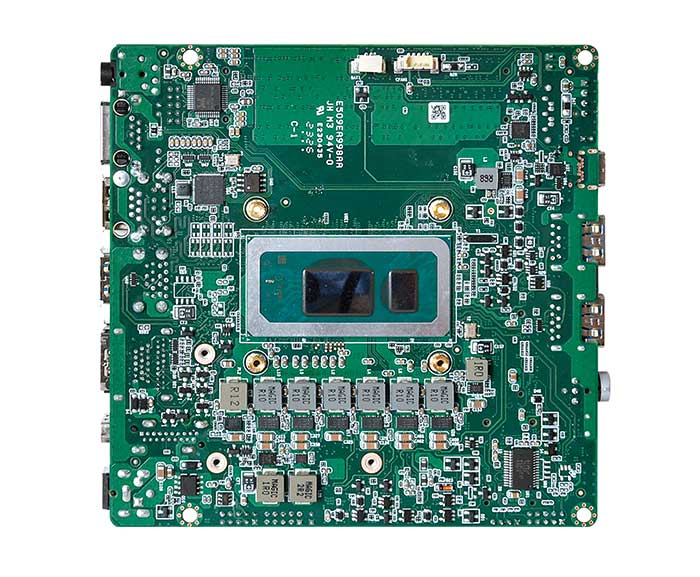

u Onboard Intel Alder Lake-U/-P series processors
u 2*DDR5 SO-DIMM, total max. 64GB
?
u Intel 2.5G network, single and dual network optional
?
u TPM2.0, 2*M.2 2280 SSD, M.2 WIFI
?
u 2*HDMI2.0, 1*DP, 2*Type-C (USB3.2+DP)
?
u DC 12-19V;
?
u ?Size: 120x120mm
Processor System
Onboard Intel Alder Lake-U/-P series processor, TDP 28W
EFI BIOS
Memory
2*DDR5 SO-DIMM, up to 64GB total
Storage
2*M.2 M-Key 2280(NVMe PCIe 4.0 x4/SATA3.0 protocol), order notes
1*SATA3.0 interface, 2Pin 5V power supply
Display
2*HD-MI2.0 interface, support 4096x2160@60Hz
1*DP, support 7680x4320@60Hz
Type-C interface, support DP 7680x4320@60Hz和USB3.2 Gen2

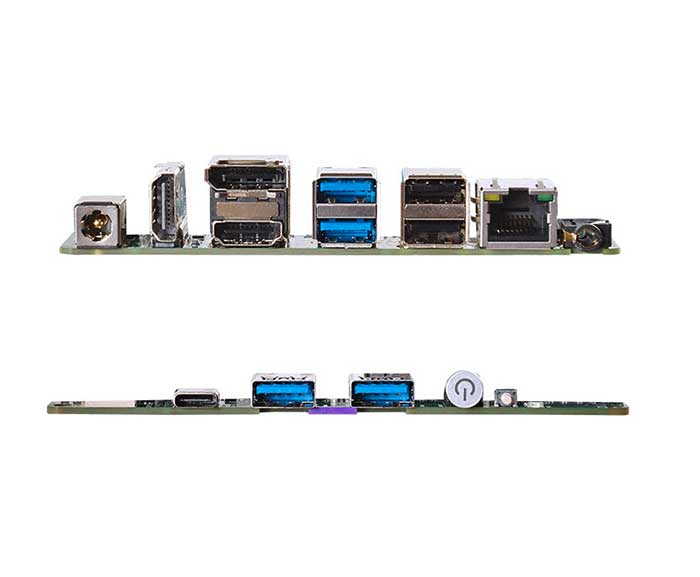

Board Side I/O Interface
Power on button, 2-in-1 audio jack, reset button, 4*USB3.0
DC JACK, 2*HD-MI, 1*DP, 1*Type-C
Single and dual-network optional: single-network, rear I/O more than 2 * USB2.0
Expansion Interfaces/Features
External TPM2.0 optional, not available by default. Default is CPU built-in TPM2.0.
1*M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module)
1*RS232/RS485 pin spacing 2.0mm
1*USB2.0 Pin, 2x5Pin, Pitch 2.0mm
1*4Pin PWM CPU FAN
Power Supply
DC 12-19V, 120W or above
Operating Environment
Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90
Storage Temperature: -40℃ ~ +85℃; Storage Humidity: 5% ~ 90%
Operating System Support
Windows 10, Windows 11, Linux
Dimension
120x120 mm
Net Weight

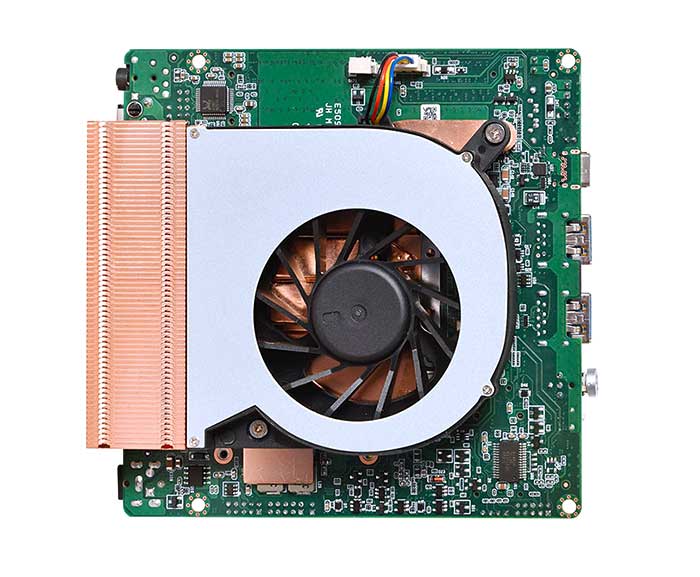

Approx. 130g without heat sink, 250g with heat sink
