Processor

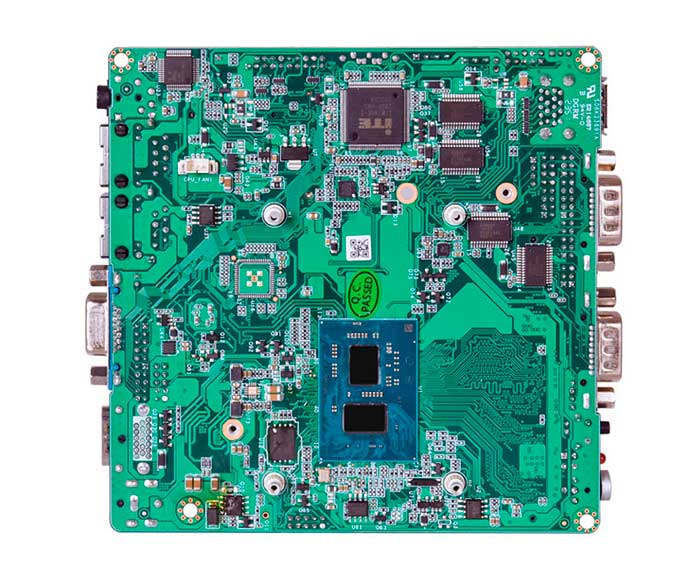

Onboard Intel Elkhart Lake series processor

EFI BIOS

Memory

1 * DDR4 SO-DIMM, supports up to 32 GB

Display

1 * VGA, maximum resolution 1920x1200

1 * HDMI2.0, maximum resolution 4K@60Hz

HDMI+VGA synchronous or asynchronous display

Storage

1 * SATA3.0

1 * M.2 2280 M-Key (PCIe3.0 2x/SATA3.0, hardware selection)

Onboard eMMC, 32GB/64GB/128GB optional

Network

2 * Intel i226-V network (LAN2 optional Intel i211)

Sound card

ALC897

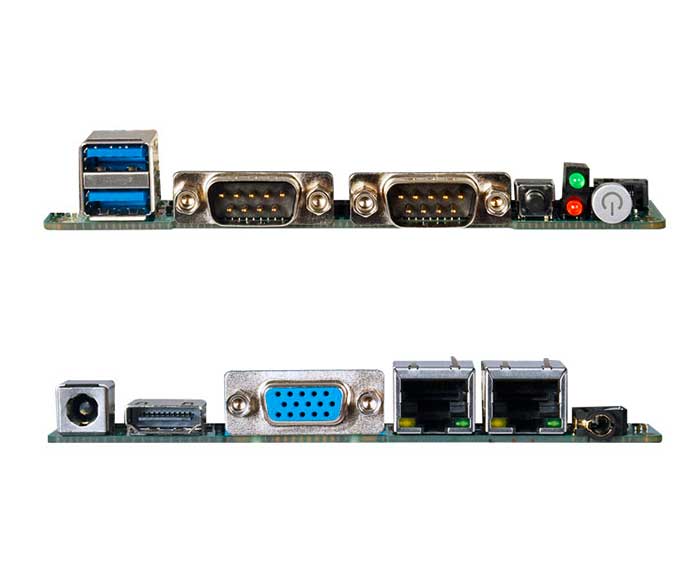

Board edge I/O interface

1 * VGA, 1 * HDMI

2 * USB3.0, 2 * DB9 COM

1 * DC JACK, 2 * LAN

On-board expansion

Interface/function

0-255 seconds, providing watchdog routine

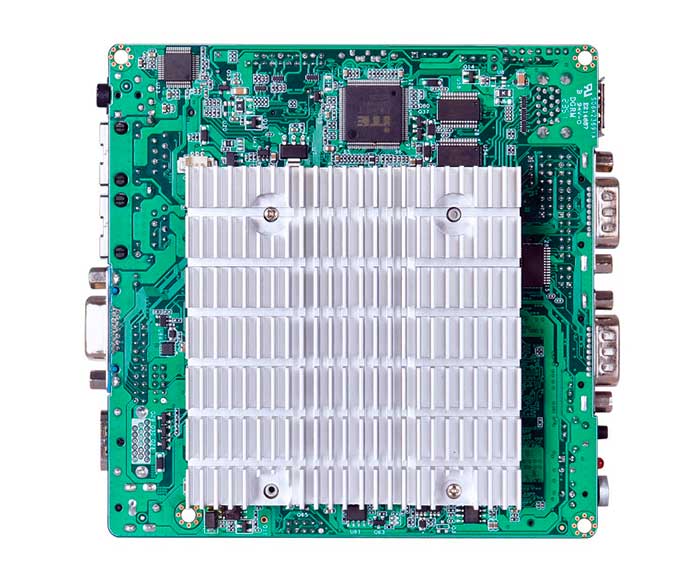

Aluminum fanless heatsink (the motherboard has a reserved fan interface that supports automatic and manual fan speed adjustment)

4 * USB2.0 pin headers, 2 x 5Pin, pitch 2.0mm

6 * COM port (COM1/2 is RS232 /RS485 jumper optional, COM3/4/5/6 is RS232)

8-bit GPIO, 2 x 5Pin, pitch 2.0mm

1 * Mini PCIe (PCIe + USB2.0 protocol)

Power Supply

DC 12V, 60W

Working Environment

Working temperature: -20℃ ~ +60℃;

Working humidity: 0% ~ 90% relative humidity, no condensation

Storage temperature: -40℃ ~ +85℃;

Storage humidity: 0% ~ 90% relative humidity, no condensation

Operating system

Windows10, Windows11, Linux

Size

120x120mm

Weight

260g including heatsink, 130g without heatsink
